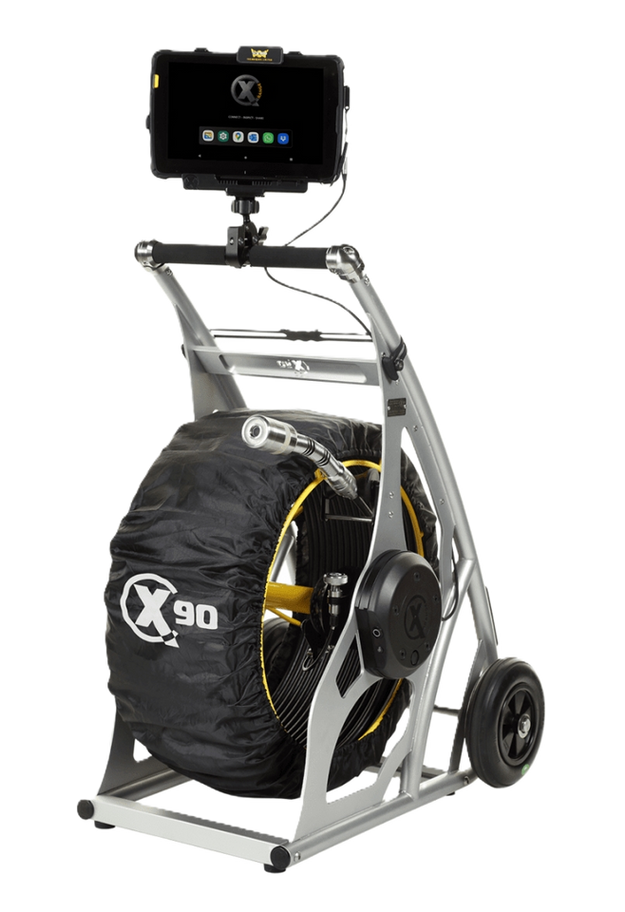

Scanprobe X90 Camera Systems with 10” Tablet
£7,000.00
Excluding Sales Tax
The Scanprobe X90 is a professional pipeline inspection camera system designed for drainage engineers who need a longer reach, clear inspection footage and a practical way to create and share reports directly from site.
Supplied with a 90m coiler, 10” X-Range tablet and 44mm camera head, the X90 is built for more demanding drainage and pipeline survey work. It gives engineers the ability to inspect pipework, record footage, capture observations and manage survey information through a simple touchscreen interface.
The X90 is particularly suited to larger drainage inspection jobs where control, battery life and reporting tools matter. Features such as PDF editing, clock position observations, disc brakes and direct sharing through apps such as Outlook and WhatsApp help make the survey process quicker and more efficient.
The system is also compatible with mina plus and optional WinCan ProTouch, giving contractors more flexibility when producing professional survey reports.
Quantity
Key Features
Professional pipeline inspection camera system
90m push-rod coiler for longer inspection runs
10” X-Range touchscreen tablet
44mm self-levelling camera head
Suitable for drainage and pipeline survey work
Built-in distance counter in metres or feet
Disc brake system for improved control on site
PDF editing and clock position observations
Report sharing through apps such as Outlook and WhatsApp
Compatible with mina plus and optional WinCan ProTouch
33kHz or 512Hz sonde/beacon options
Up to 10 hours battery life
IP56-rated coiler and IP68-rated camera head
CE and UKCA approved
Product Specification
Rod length: 90m / 295ft
Rod diameter: 12mm
System weight: 31.3kg
Camera diameter: 44mm
Pipe use: 50mm – 300mm
Distance counter: metres / feet
Battery capacity: 13.04Ah
Battery life: up to 10 hours
Charge time: 6 hours
Nominal voltage: 7.4V
Coiler dimensions: W 509mm x H 837mm x L 657mm
Coiler IP rating: IP56
Camera head IP rating: IP68
Sonde/beacon: 33kHz or 512Hz
Self-levelling camera: yes, with dual bearing stability
Approvals: CE and UKCA
